How to schedule SMS using SCG Messaging API

Specification v1.0, June 2022



Introduction

The SCG messaging API supports scheduled delivery of SMS messages at a specific moment in time. This enables the user to create & send SMS ahead of the intended delivery time.

Purpose of this document

This document describes how to use the SCG message_requests API method, specifically the field "scheduled_delivery_time" option in the request body to set the delivery time for a SMS message. It describes the field type: epoch time. For more information on epoch time follow the link https://www.epochconverter.com/

Requesting a scheduled SMS

Through the SCG Messaging API: The field "scheduled_delivery_time" requires the value for the required time to deliver the SMS to be in epoch format.  As shown in this example:

  • The epoch time is the number of seconds that have elapsed since January 1, 1970 (midnight UTC/GMT).
  • Epoch time can be a timestamps in seconds (10-digit), milliseconds (13-digit) and microseconds (16-digit).
  • the date command to convert from human date to epoch is :

$ date +%s -d"Jun 29, 2022 17:40:00"

1656546000



Here is an example Curl command to send a scheduled SMS at Jun 29, 2022 05:40:00 PM:



curl -L -X POST https://api.syniverse.com/scg-external-api/api/v1/messaging/message_requests -H "Content-Type: application/json" -H "Authorization: Bearer [TOKEN]" -d "{\"from\":\"channel:Bxn9SHBYhl89KnuDllO2L4\",\"scheduled_delivery_time\":1656546000,\"to\":[\"+5066173XXXX\"],\"body\":\"Test scheduled message using curl command 10 digit\"}"





You can see in the DR the message request’s “state” change from “SCHEDULED” to “SENT” in the scheduled time.

{

  "topic": "SCG-Message",

  "attempt": 1,

  "event": {

    "fld-val-list": {

      "previous_state": "SCHEDULED",

      "message_request_id": "A7gE4xn5JD17a1MvdnEwT2",

      "message_id": "A7gE4xn5JD17a1MvdnEwT2",

      "to_address": "+5066173XXXX",

      "has_attachment": false,

      "reason_description": "SUCCESS",

      "application_id": 11407,

      "reason_code": "200",

      "sender_id_alias": "FVwXNFWghnXyBazsR1HxQ3",

      "company-id": [company_id],

      "sender_id_id": "FVwXNFWghnXyBazsR1HxQ3",

      "external_message_request_id": "",

      "new_state": "SENT",

      "fragments_count": 1,

      "from_address": "7777",

      "mt_price": 0.024

    },

    "evt-tp": "message_state_change",

    "timestamp": "2022-06-29T23:40:00.323Z"

  },

  "event-id": "uyrjt86vRnq2TR08c4xAwA"

}



Note:

Epoch timestamp: 1656567600 = June 29, 2022 5:40:00 PM GMT-06:00 = 2022-06-29T23:40:00.323Z

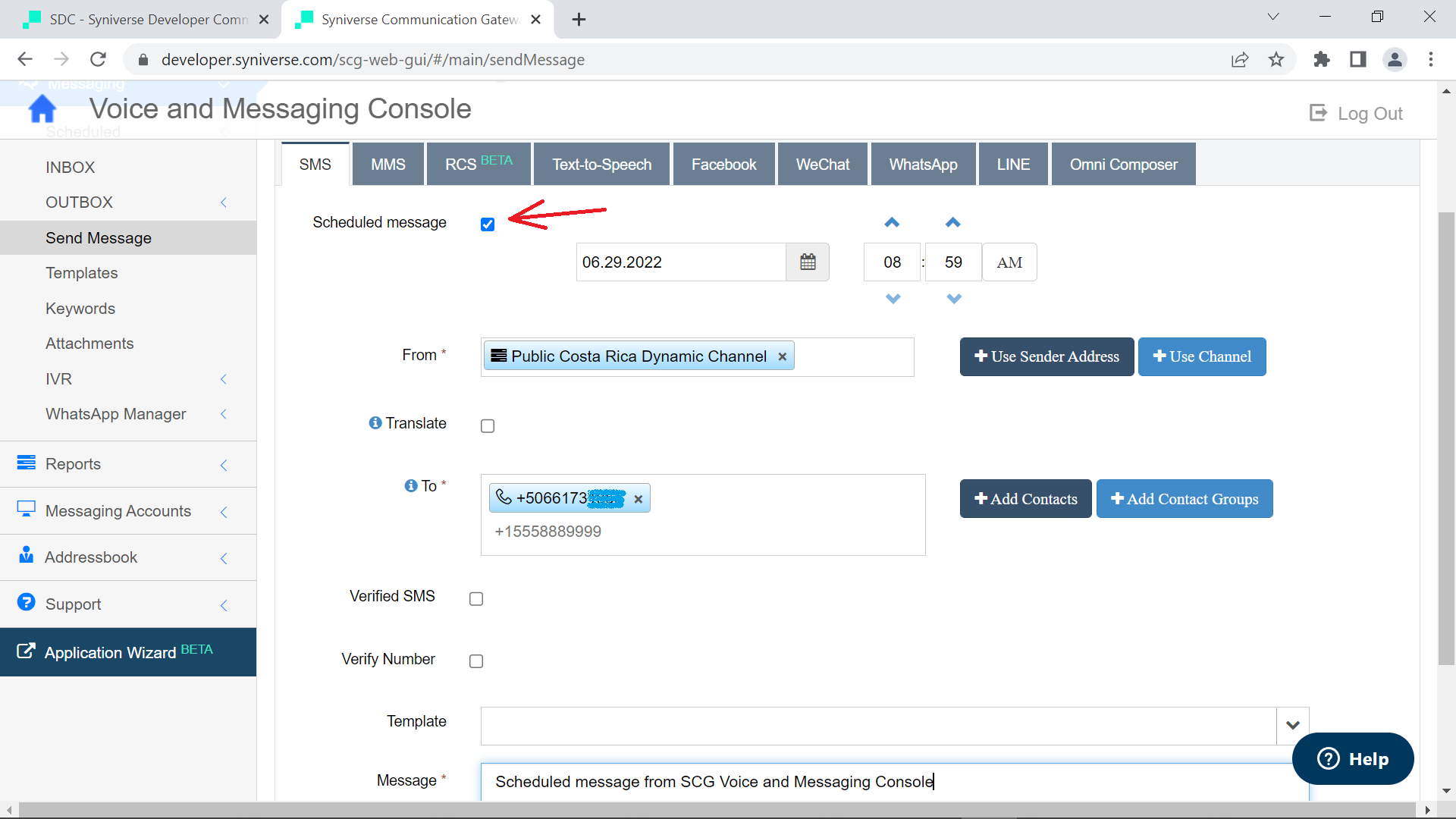

Scheduled messages can also be sent via the “Send message” option in the SCG Voice & Messaging console:  Check the Scheduled message check box as shown here to enable the date and time for delivery:










In the OUTBOX you can find the request details:
